Back • RAKTT Details

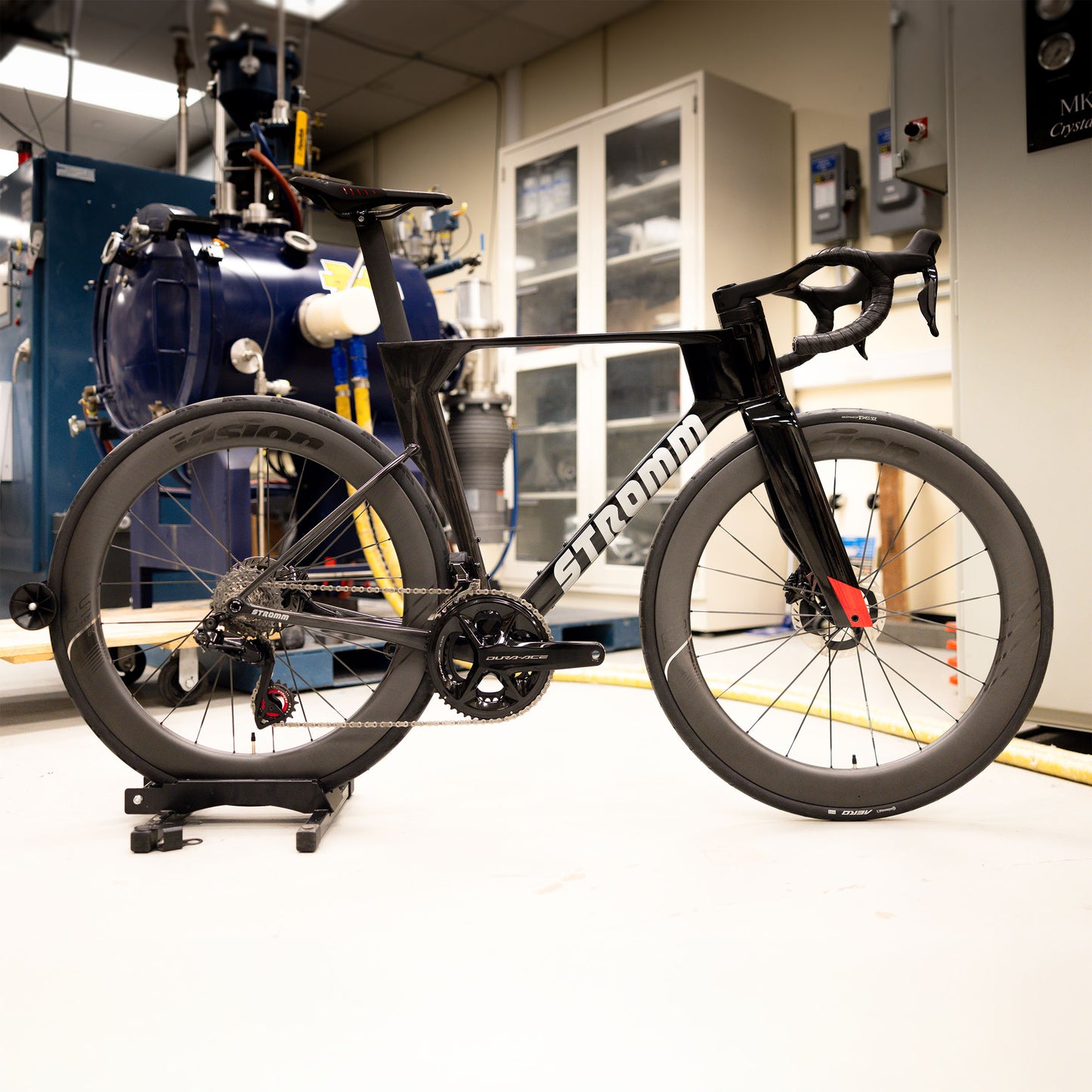

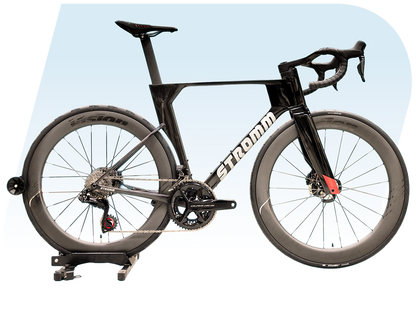

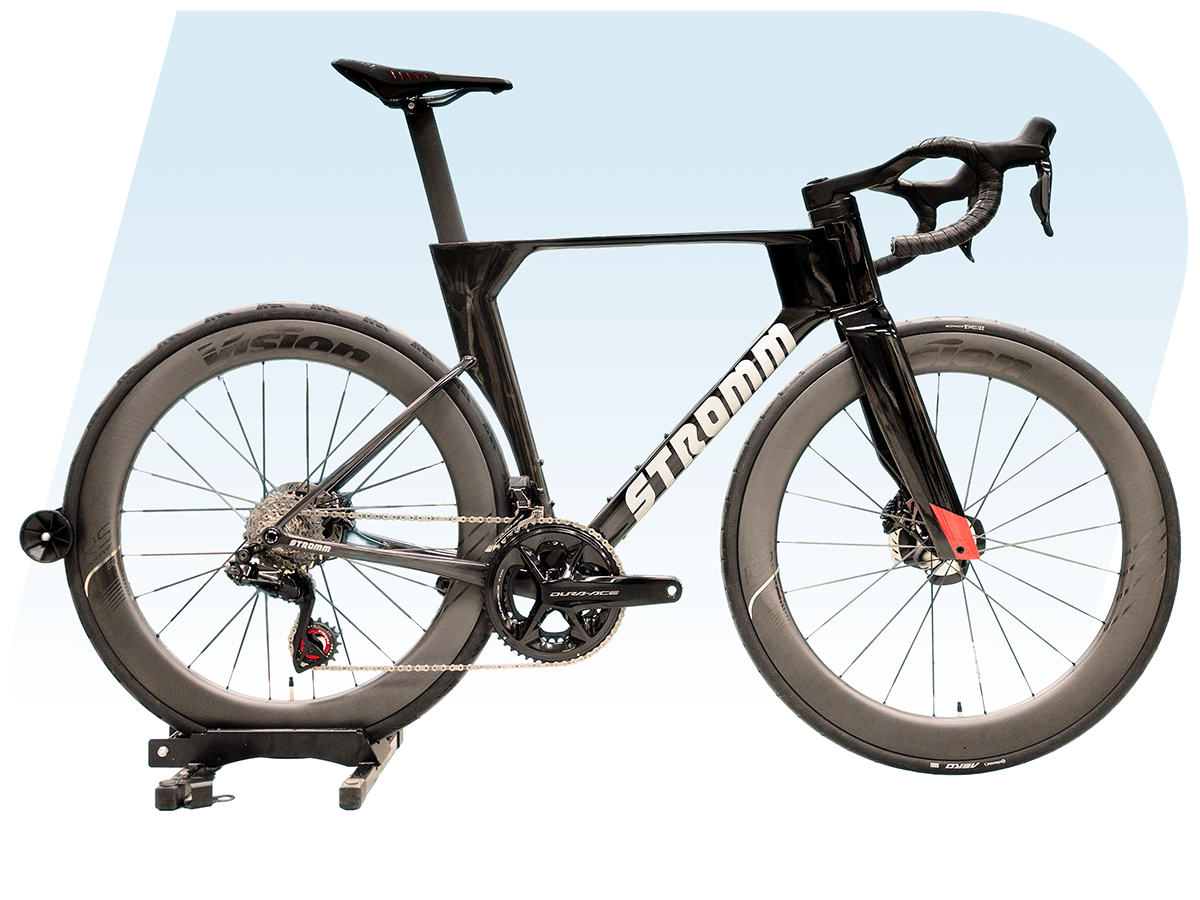

RAKTT | Shimano Dura Ace Di2

Stromm Cycles

RAKTT | Shimano Dura Ace Di2

$13,000.00 USD
$13,000.00 USD
Color: SR-71 Black
Size: 48
  • Inventory on the way
Included:

RAKTT is the fastest UCI legal aero road bike according to independent testing. Designed to maximize the performance of the rider, in aerodynamics, handling, stiffness, and weight, all while maintaining practicality.

Please contact us for any component/sizing customization you may like - we're often happy to accommodate!

RAKTT

All Groupsets

RAKTT | Shimano Dura Ace Di2
Stromm Cycles

RAKTT | Shimano Dura Ace Di2

$13,000.00 USD
$13,000.00 USD
RAKTT | Shimano Ultegra Di2
Stromm Cycles

RAKTT | Shimano Ultegra Di2

$9,500.00 USD
$9,500.00 USD
RAKTT | SRAM Red XPLR AXS
Stromm Cycles

RAKTT | SRAM Red XPLR AXS

$13,000.00 USD
$13,000.00 USD
RAKTT | Frame Module
Stromm Cycles

RAKTT | Frame Module

$7,000.00 USD
$7,000.00 USD
RAKTT | Frame
Stromm Cycles

RAKTT | Frame

$6,200.00 USD
$6,200.00 USD

Groupset Specs

RAKTT | Shimano Dura Ace Di2

Size 48 51 54 56 58 61
Fork RAKTT Bayonet, 47 mm Rake RAKTT Bayonet, 44 mm Rake
Headset Enduro Bearings ACB Mini 276442 SS
Bar Stem Length 95mm 110mm 125mm
Handlebar Baarja 37/40
Seatpost RAKTT 15mm Offset
Saddle Prologo Carbon
Shifters Dura-Ace Di2 9270
Brake Calipers Dura-Ace Di2 9270
Brake Rotor (F) Shimano RT-CL900, 160mm
Brake Rotor (R) Shimano RT-CL900, 140mm
Front Derailleur Dura-Ace Di2 9270
Rear Derailleur Dura-Ace Di2 9270, 12s, OS Pulley
Cassette Dura-Ace 11-30T, 12s
Chain Dura-Ace/XTR CN-M9100, 12s
Crankset Dura-Ace FC-R9200 PM, 160mm Dura-Ace FC-R9200 PM, 165mm Dura-Ace FC-R9200 PM, 170mm
Chainrings Dura-Ace FC-R9200, 52-36T
Bottom Bracket Ceramic BB
Wheels Vision Metron RS 60
Thru Axles Included
Tire (F) Continental Aero 111, 29mm
Tire (R) Continental GP5000S TR, 30mm
Max Tire Width (WAM) 34 mm
Accessories Computer/Light Mount, Headset Tool, Spares Kit

Size & Geometry

Size 48 51
 54
 56
 58
 61
Stack (mm)
 495 513.0
 535.0
 555.0
 575.0
 600
Reach (mm)
 362 376.3
 388.6
 400.9
 414.2
 426.6
Head Tube Angle (deg)
 71.5 72
 72.5
 73
 73.5
 74.25
Seat Tube Angle (deg)
 75.5 75
 74
 74
 73
 73
Fork Rake (mm)
 47 47
 47
 47
 44
 44
Bottom Bracket Drop (mm)
 76 76
 76
 76
 76
 76
Front Center (mm)
 574.6 589.1
 604.3
 614.5
 628.5
 642.6
Chainstay Length (mm)
 410 410
 410
 410
 410
 410
Wheelbase (mm)
 946.3 953.3
 974.7
 984.4
 1008.5
 1027.9
Standover (mm)
 735.1 752.8
 760.7
 777.2
 813.0
 837.3

Please specify desired bar width in special request order section.

Bar Dimension Size
Widths (outside-outside, tops/drops, mm) 330/360, 360/390
Stem Lengths (mm) 80, 95, 110, 125, 140
Stem Angle (deg) -6
Drop (mm) 130
Reach (mm) 75
Steerer Tube Diameter (in) 1.125

Questions?

Need help ordering a bike to your specifications, have a particular question, or just want to nerd out? Send us a message, and the designers & engineers behind STROMM will get back to you.
